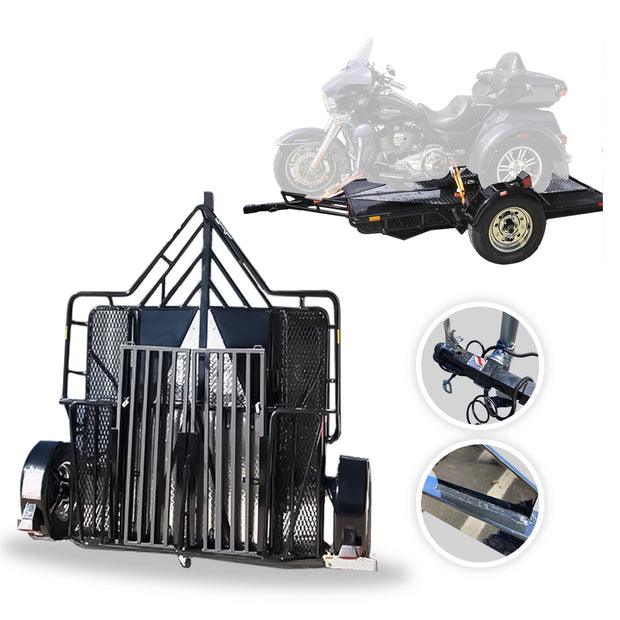

Kendon Folding Trike Trailer and Spyder Trailer

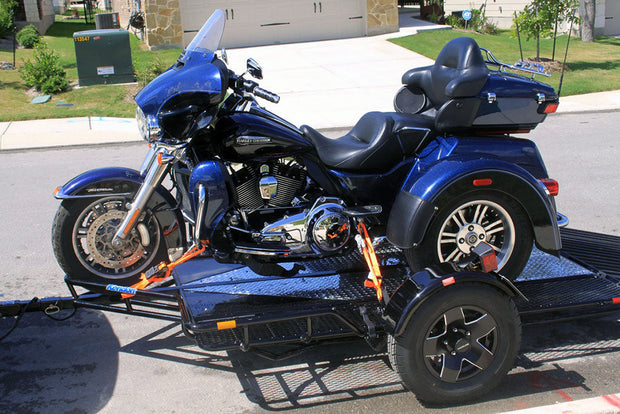

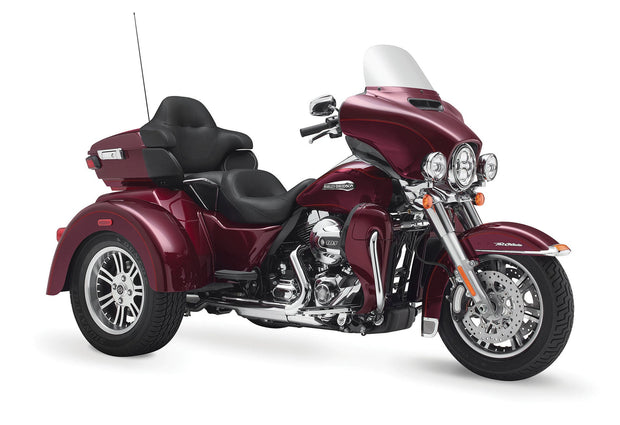

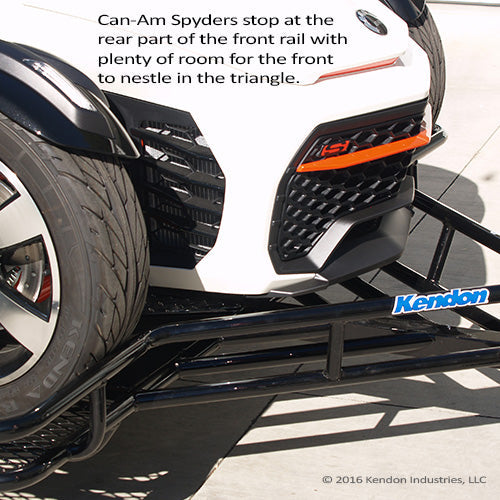

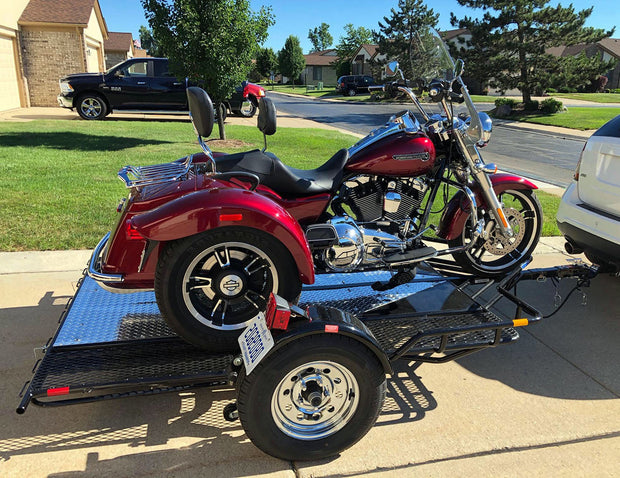

Introducing the brand-new Kendon Stand-Up™ Trike/Spyder/Sidecar** Trailer. The newest addition to the Kendon line of legendary space-saving powersports trailers is specifically designed for your three-wheeled vehicles, including Harley-Davidson trikes, conversion trikes, Can-Am Spyders, sidecars**, and almost anything else you can fit on it.
Kendon Folding Stand-Up™ Trailers Standard Features
- Independent torsion bar suspension

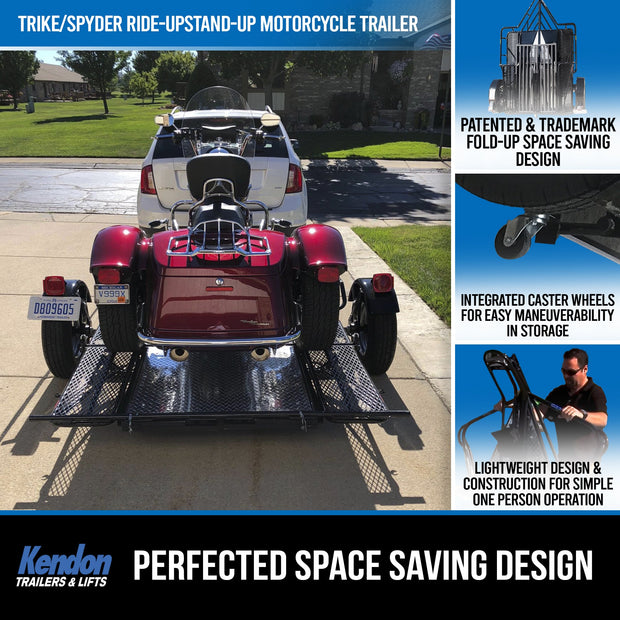

- Integrated casters for easy maneuverability in storage
- Lightweight design and construction for simple, one-person operation
- 13-inch chrome wheels with radial tires
- Industrial-grade powder coating finish
- Kendon’s legendary towing performance
- Made in USA
- Custom powder coat colors available, call for details
- 3-year and 5-year Factory Extended Warranty available
- Please see Additional Info tab for important fit info
Model: Trike/Spyder/Sidecar** Ride-Up SRL Trailer
Part Number: BB307RU
Standard Color: Black
Paint/Coating: Powder Coated
Frame Material: Steel Tubing

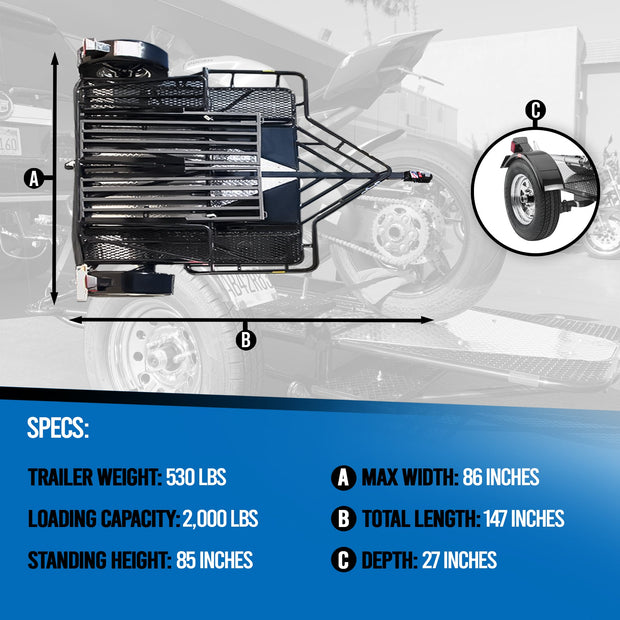

Deck Area: 64″ x 86″

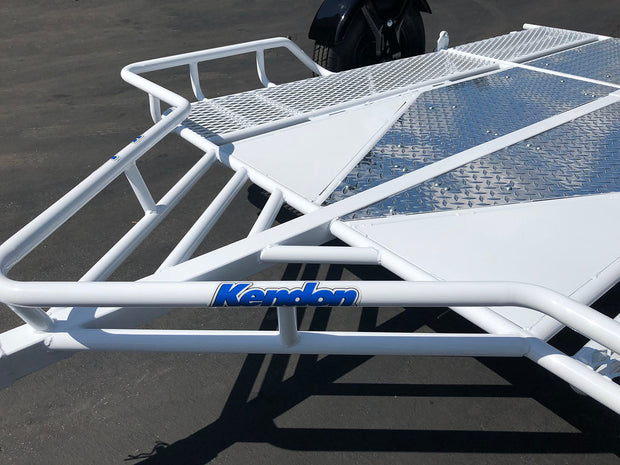

Deck/Platform Type: Aluminum Diamond Plate/Expanded Metal/14-gauge Sheet Metal
Deck/Platform Height: 13″
Weight: 530 lbs.
Load Capacity: 2,000 lbs.
Maximum Length: 147″ with ramps in extended position
Standing Depth: 27″
Standing Height w/o removable tongue: 85”
Standing Height with removable tongue: 99”
Length from Front Tire to Rear Axle: 88″ (Max Bike Measurement)
Width Between Fenders: 71″
Ramp: 2-piece folding ramp, 60″ x 33″ (included)
Wheel/Tire Size: ST175/80R13 – 13″/Radial
Wheel/Rim Type: 8-Spoke Chrome/Steel
Wheel Bolt Pattern: 5-on-4½”
Hitch Class: Class 2 or Higher (recommended)
Hitch Height: 13″
Coupler/Ball Size: 2″
Coupler: Requires 2″ Ball
Electrical Connector: 4-Pin Flat
Suspension Type: Independent Torsion Suspension
Suspension Mounts: Double Mounting Brackets
End-Units/Hubs: Removable Spindle – SuperLube
Tongue Weight: 10% – 15% of Total Load Weight (approximate)
Transportation Capabilities: One three-wheeled vehicle or one Cruiser, Sport, Adventure Touring, Dual Sport and/or Dirt Bike and/or Cargo
**Special note: Most sidecar rigs must be loaded backwards to ensure proper tongue weight. Please verify you have 10%-15% tongue weight prior to towing. Failure to load most sidecar rigs backwards and/or verify proper tongue weight prior to towing may result in dangerous trailer sway, which could result in property loss, injury, or death.
Gloss Black, Gloss White, Gloss Blue, Gloss Orange, Gloss Red, Gloss Yellow, Gloss Green, Silver**, Chrome**

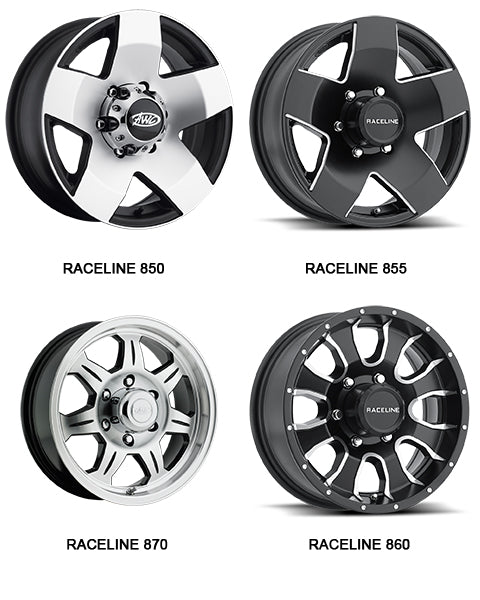

Chrome Steel, Aluminum Raceline 850, Aluminum Raceline 855, Aluminum Raceline 870, Aluminum Raceline 860
*Free freight to contiguous 48 USA states via standard LTL ground freight with delivery to a residence (liftgate included), local freight terminal or business only (must specify if business has forklift access or requires liftgate). Home delivery may not be available/not guaranteed to all locations. Home deliveries, where possible, are curb-side-only; inside delivery or additional requests may incurr additional charges.
**Additional cost may apply to non-standard and custom colors. Kendon does not guarantee 100% color match on/to vehicles.
All products are shipped FOB (Freight On Board) Placentia, California. Kendon does not guarantee shipping and/or transit times. Customer is responsible for any additional freight charges. Residential deliveries, where possible, are curb-side-only. Due to the large size and height of Kendon trailers, Kendon cannot guarantee that a trailer can be shipped and delivered to all business and residential locations throughout the United States. Due to equipment and area limitations, residential deliveries with a lift gate cannot be guaranteed to all locations. If unsure, please contact Kendon for a freight quote and to verify that a trailer can be delivered to your location. Kendon does not accept returns without an RGA (Return Goods Authorization) number. Customer is responsible for return freight. Returns may be subject to 20% restocking fee.
