Lights & Wiring
The Replacement Kendon Tail light provides 6 legal functions to include stop, tail, turn, rear and side reflex and side marker.
- Replaceable acrylic red lens and high-impact housing provides a low-maintenance light
- Replace bulbs with any standard #168 (Side Marker) and #1157 incandescent
- Left (Driver Side) - With License Plate Light
- Right (Passenger Side)
Also Available Replacement Lenses for Kendon Tail lights. Replace your broken/cracked lens on your tail lights.
- Rear Lens (Dimensions: 4 5/8'' x 4 5/8")
- Side Marker Lens (Dimensions: 2 7/8" x 2")

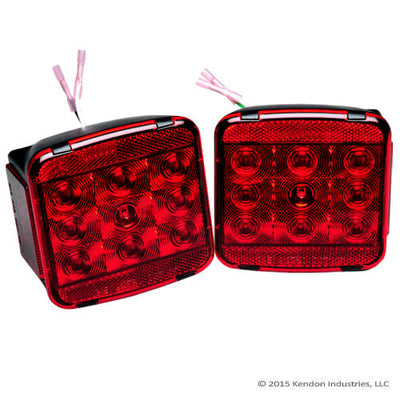

LED Tail Light Kit Product Description
This High Performance LED Tail Light Kit offers superior styling, brighter illumination, and more reliability. LED Lights are a highly demanded performance upgrade for owners who want the best. Now you can have the best on your Kendon Trailer. These new LED Tail Light Kits are available for all Kendon Trailer models.
Sold as a complete kit. Includes both LED Tail Lights, all wiring and custom mounting spacers. Complete mounting instructions included.
LED Trailer Tail Light Kit Features & Benefits
Key Motorcycle Trailer High Performance LED Tail Light features and benefits.
- Custom LED Tail Light Kits offer brighter and superior performance over stock lights.
- Combination LED Stop, Turn, and Tail Light.
- Solid State Construction - no bulbs to break or burn out.
- 100,000 hour rated life.
- Fully Sealed submersible construction.
- Potted circuitry protects against moisture, corrosion and vibration.
- Direct replacement for standard Kendon Lights.
- Meets or exceeds all DOT requirements.
- Kendon Custom Brackets and wire length for easy customer installation.
- 3 Year limited warranty.
Model : LED Tail Light Kit
Part Number : LEDTLK
Standard Color : Black
Type : Solid State Construction LED
Life Expectancy : 100,000 Hour Rated Life
Tools Required : Wire Cutter/Crimping Tool and 7⁄16 Wrench
Illumination : Combination LED Stop, Turn and Running Lights
Submersible : Yes
Application : Dual, Single, Sport/Dirt Bike Combo, Utility, K600 and Chopper Trailers
All measurements in inches (in/”) and weights in pounds (lbs).
1.Manufacturer’s Suggested Retail Price (MSRP) excludes destination freight charges, tax, title, license, handling, dealer fees and optional equipment.
Photos shown are representational photos only. Kendon reserves the right to technical changes and model changes. Models shown equipped with standard equipment only. Optional equipment not included. Accessories are optional.
Kendon 4-Pin Trailer Wiring Harness - 15 Ft
The Kendon 4-Pin Trailer Wiring Harness is designed to replace faulty/damaged wiring harness and allows you to connect to your tow vehicle to control trailer light functions.
Color Coded Wires for Easy Installation
- White - Ground
- Brown - Tail, License Illuminator, Side Markers
- Yellow - L/H Driver Side Stop & Turn
- Green - R/H Passenger Side Stop & Turn
Manufacturer Cross Reference
Harness will work as an exact replacement for:
- All Kendon Trailers - (Some models will require trimming)
