Single-Rail Ride-Up SRL Folding Stand-Up™ Motorcycle Trailer
The Kendon Single-Rail Folding Stand-Up™ Motorcycle Trailer is our premiere single bike trailer and incorporates the best we have to offer. The Single-Rail SRL may seem small, but it packs a powerful punch of lightweight, user-friendly design and amazing, space-saving convenience. The Single Ride-Up trailer offers ride-on capabilities, Kendon’s renowned towing performance and load carrying capacity of one full-size motorcycle up to 1,000 pounds. When in storage, the one-rail ride-on bike trailer takes up about the same space as a small bedroom dresser or a chest of drawers.
Thanks to our Suspension Reactive Loading (SRL) frame geometry and suspension design you can ride your bike onto the single trailer, making it much easier to load heavy, full-size bikes. As you ride your bike onto the trailer the suspension compresses under the weight of the bike, virtually eliminating the ramp-to-trailer apex. Once the bike is loaded, the suspension rebounds back up and levels the trailer.
Our Ride-Up models feature wider loading ramps, wider rear sections, and foot extensions to provide safe foot placement as you ride the bike onto or back the bike off of the trailer. Lightweight design for true one-person operation (a spotter is always recommended for safe trailer usage).
The Single-Rail trailer features a wide expanded metal with diamond plate deck area designed to hold one full-size bike such as a Harley-Davidson, GoldWing, K1600, adventure bike, etc. The heavy-duty torsion-bar axle and hub combination give the Single-Rail its full 1,000-lbs. carrying capacity.
The Single-Rail SRL Ride-Up Folding Stand-Up™ Motorcycle Trailer is perfect for any rider – from moto to track, cruiser to sport. It combines ride-on convenience and safety with a lightweight, user-friendly, space-saving design. Designed for bikes of all sizes and riders of all styles, this is the trailer for you no matter what or where you ride.
Single-Rail Ride-Up SRL Folding Motorcycle Trailer Features at a Glance
- Suspension Reactive Loading frame geometry technology
- Extra-wide, three-piece, loading ramp
- Full trailer width rear section for foot placement during loading/unloading
- Removable rail with integrated front wheel chock
- 1,000 lb. carrying capacity for one full size bike or cargo
Kendon Patented Trailer Chassis Design
Tow in Style!
Fully customize your trailer the way you want it at NO extra cost.** Select from a range of color options and four alloy wheel styles. Can’t choose just one color? Choose two! You can select a one or two-tone color option to make your trailer stand out from the crowd.
Kendon Patented Trailer Torsion Axle Design
Standard Features on Kendon Folding Trailers
- Patented independent torsion bar suspension
- Integrated casters for easy maneuverability in storage
- Lightweight design and construction for simple, one-person operation
- 13-inch alloy wheels with radial tires; choose from four rim styles!
- Industrial-grade powder coating finish; select your color for a unique trailer to match your style**
- Kendon’s legendary towing performance
- Handcrafted in California; Made in USA
- 3-year and 5-year Factory Extended Warranty available
Add accessories to your trailer for a complete towing package. From tie-downs to LED Lights to full Deluxe Trailer Accessory Packages. A range of accessory options is available to enhance the functionality of your Kendon trailer. Also available is a full line of replacement parts. Should something go wrong, Kendon has you covered.
Model: Single Rail Ride-Up SRL Trailer
Part Number: BB107RU
Standard Color: Black
Paint/Coating: Powder Coated
Frame Material: Steel Tubing
Deck Area: Diamond shape front, rounded square rear, 35″ x 84″
Deck/Platform Type: Aluminum Diamond Plate (.063 Gauge)/Expanded Metal
Deck/Platform Height: 13″
Weight: 350 lbs.
Load Capacity: 1,000 lbs.
Total Overall Length: 114″ without ramp
Total Overall Length: 157″ with ramp
Standing Depth: 27″
Standing Height: 84″
Length from Front Tire to Rear Axle: 96″ (Max Bike Measurement)
Width Between Fenders: 54″
Width Between Rails: N/A (removable rail)
Ramp: 3-piece ramp, 45″ x 33″ total size (included)

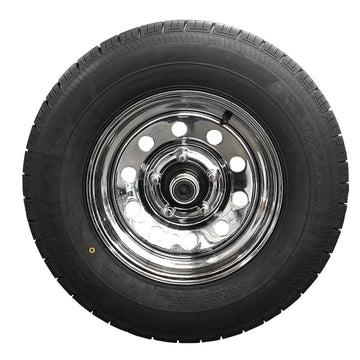

Wheel/Tire Size: ST175/80R13 – 13″/Radial
Wheel/Rim Type: 8-Spoke Chrome/Steel
Wheel Bolt Pattern: 5-on-4½”
Hitch Class: Class 2 or Higher (recommended)
Hitch Height: 19″ – 21″
Coupler/Ball Size: 2″
Coupler: Requires 2″ Ball
Electrical Connector: 4-Pin Flat
Suspension Type: Independent Torsion Suspension
Suspension Mounts: Double Mounting Brackets
End-Units/Hubs: Removable Spindle – SuperLube
Tongue Weight: 10% – 15% of Total Load Weight (approximate)
Transportation Capabilities: Up to one (1) Cruiser, Sport, Adventure Touring, Dual Sport and/or Dirt Bikes and/or Cargo
1.) Manufacturer’s Suggested Retail Price (MSRP) excludes destination freight charges, tax, title, license, handling, dealer fees and optional equipment.
2.) Maximum Length refers to the unfolded/open trailer length measured from the front of the coupler to the back of the rear folding section.
3.) Max bike measurement is measured from the front of the motorcycle’s front tire to the center of the rear axle.
4.) 5-Spoke Aluminum Wheel with Radial Tire upgrade is available for all Kendon trailers.
5.) Hitch Height refers to the standard hitch height, which may vary with vehicle, trailer, and load. Trailer should be level in tow. Check carefully before towing.
6.) Due to the vast number of different vehicles, trailer applications, capabilities and functions may vary. Please contact Kendon with your specific application to ensure the product fits your needs.
